High Temperature Nanoindentation: Techniques, Applications and System Overview
Nanoindentation is widely used to measure mechanical properties such as hardness and modulus at the nanoscale. For advanced materials research, high-temperature nanoindentation is essential for understanding material behaviour in extreme environments, including coatings, metals, and energy materials.
This article introduces high-temperature nanoindentation and highlights the capabilities of the Hysitron xSol High Temperature Stage for precise nanomechanical testing across a broad temperature range.
What Is High-Temperature Nanoindentation?
High temperature nanoindentation allows researchers to measure mechanical properties such as hardness, modulus, and creep behaviour at elevated temperatures. By applying controlled force to a material’s surface while heating the sample, it is possible to understand how the material deforms, softens, or degrades under real-world operating conditions.
This makes the technique particularly valuable for studying materials used in high-performance and high-temperature environments.
Applications of High Temperature Nanoindentation
High temperature nanoindentation is used across a wide range of research and industrial applications, including:
Thin films and coatings performance at elevated temperatures
These insights are critical for materials development, quality control, and failure analysis.
Hysitron xSol High Temperature Stage
An understanding of nanoscale mechanical properties is important when researching and developing reliable high temperature materials for use in extreme environments. The Hysitron xSol High Temperature Stage delivers high-resolution nanomechanical characterisation over a broad temperature range, up to 800°C.
The thermally stable stage design provides accurate, feedback-controlled temperatures with fast stabilisation times. Dual resistive heating elements minimise temperature gradients within the sample, ensuring uniform surface temperature and reliable test conditions.
The xSol High Temperature Stage is designed for use with Hysitron TI 950 TriboIndenter and TI Premier nanoindentation systems, enabling advanced nanomechanical testing, including creep and long-duration measurements at elevated temperatures.

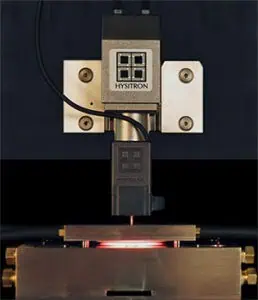

Hysitron’s xSol High Temperature Stage integrated with the TI 950 TriboIndenter® Nanoindentation System.
Testing Stability and Temperature Control
The relationship between temperature stability, thermal expansion, and thermal isolation defines the lower limits of nanoscale testing at elevated temperatures. The xSol stage combines low-thermal-expansion materials with precise PID-controlled heating to ensure accurate and repeatable measurements.
Uniform temperature control across the sample surface, combined with effective thermal isolation, enables consistent results even during long-duration testing. This is essential for studying creep behaviour and material performance under sustained thermal stress.
Key Features of the xSol High Temperature Stage
Thermally stable stage design for reliable nanomechanical characterisation up to 800°C
Uniform micro-environment with minimal thermal gradients
Accurate temperature control with fast stabilisation
Reduced effects from reactive chemistries such as oxidation
Compatibility with in-situ SPM imaging, nanoindentation, nanoscratch, nanowear, and nanoDMA techniques
Nanoindentation Systems and Support in the Nordics
Blue Scientific provides nanoindentation and nanomechanical test systems, including Hysitron solutions, to researchers and R&D teams across the Nordics.
👉 Explore our nanoindentation and nanomechanical test systems
Available across Sweden, Denmark, Norway, and Finland with local application and service support.
Last updated: March 2026
