How to control iron ore with the Bruker S8 TIGER sequential WDXRF spectrometer and GEOQUANT package. A fast and accurate method for iron ore grade control in mining and steel production. Results are stable, repeatable and compliant with ISO 9516:2003.
Iron Ore Grade Control
Iron ore is one of the world’s most important natural resources, vital for the production of iron and steel in the construction, machinery, and automotive industries. Direct shipping ores are the most valuable, with iron concentrations above 60% (hematite and magnetite). The commercial value of ore is affected by trace elements such as P, As and Cu, which can influence production costs and the quality of the final steel.
Grade control of iron ore is therefore very important, and it requires a high degree of precision. In global trade, standardised analysis is necessary; WDXRF is an ideal technique because it is highly accurate for measuring major, minor, and trace elements and provides short measurement times.
Bruker S8 TIGER
The Bruker S8 TIGER Series 2 is a sequential WDXRF spectrometer ideal for iron ore analysis, especially when used with GEOQUANT Iron Ore, a turn-key solution specifically for fast grade control. It is ideal for use in:
- Geochemical service labs
- Mine side labs
- Central labs at steel plants
Bruker’s new HighSense counting electronics enable you to use extremely high intensities for fast measurement without compromising precision.
Results from the Bruker S8 TIGER are compliant with ISO 9516:2003.
Sample Preparation

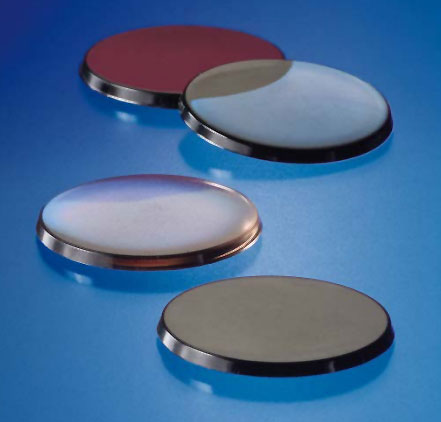

The most convenient sample preparation technique for iron ore is fused bead preparation. With this method, data quality is not altered by mineralogical effects. High-iron samples can be analysed accurately at higher dilutions than pressed pellets.
Maximum Precision
The S8 TIGER features several features to ensure precise results. The sample position has a great effect on precision, so it is very important. Firstly, samples are loaded directly into the measurement position. Turret-based sample-handling systems can often lead to mechanical errors.
A constant distance between the tube anode, the sample surface, and the goniometer must be maintained, independent of the various sample cups. Bruker’s HighSense HV generator and stable X-ray tube, along with the goniometer, XS-100 multi-layer optics and high-resolution analyser crystal, ensure the highest sensitivity, resolution and precision. New HighSense detectors and counting electronics deliver a maximum count rate of 4 Mcps for both detectors, flow and scintillation counters. The linear range spans almost 2 Mcps, enabling wide-range calibration for low- and high-grade ores.
Accuracy Test

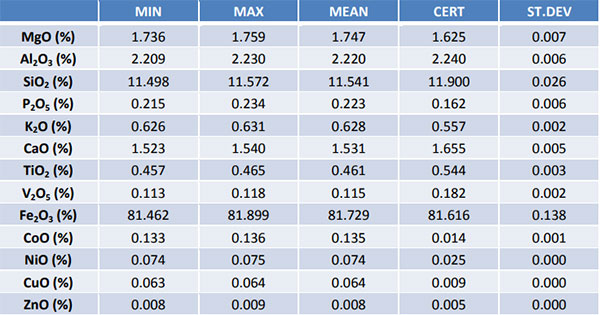

In this test, an iron ore sample from Sweden was analysed using the S8 TIGER to demonstrate the system’s accuracy. The sample was measured 10 times, reloading the sample each time to simulate a real-world measurement. The results are shown in the table below, with comparisons to the certified values. As you can see, the low standard deviation and RSD show that the results are highly stable and accurate:
Calibration Set: GEO-QUANT

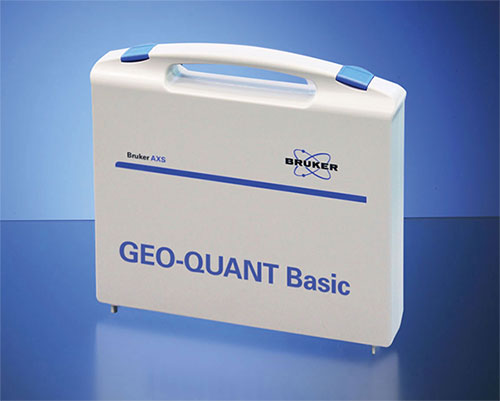

The calibration set used in the test above can be purchased as a pre-calibrated method, GEO-QUANT Iron Ore. The set includes:
- Ready-to-Fuse glass powder standards
- 2 original CRM QC samples
- Drift Monitor from XRF Scientifics
- Memory stick loaded with all calibration parameters
