How to characterise multi-layer films with sub-micron infrared spectroscopy. O-PTIR is a breakthrough technique that makes it easy to measure films that were previously difficult to analyse due to spatial resolution limits.
- Sub-micron resolution IR
- Non-contact, reflection mode technique
- Analyse samples of any thickness
- Transmission FTIR quality spectra
Blue Scientific is the official distributor for Photothermal Spectroscopy Corp in the UK, Ireland and Nordic region (Norway, Finland, Sweden, Iceland, Denmark). For more information or quotes, please get in touch.
[icon icon=”info”] mIRage IR microscope
[icon icon=”next”] Contact us on +44 (0)1223 422 269 or info@blue-scientific.com
Limitations of FTIR
FTIR (Fourier-transform infrared spectroscopy) is commonly used to analyse thin films and multilayer materials. However, as layers become increasingly thinner (for example in packaging materials, especially in the food industry), the spatial resolution of FTIR is often insufficient.
Optical Photothermal IR (O-PTIR) spectroscopy is a revolutionary technique that overcomes this limitation:
- Sub-micron IR characterisation of thin multilayer films for the first time
- Non-contact reflection mode IR technique
- Simpler sample preparation for faster time-to-results
What is Optical Photothermal IR Spectroscopy?

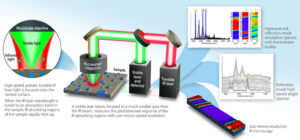

O-PTIR overcomes the IR diffraction limit by combining a mid-IR pulsed tunable laser with a colinear visible probe beam. When the IR laser is tuned to a wavelength that causes a molecular vibration in the sample, there is absorption. The photothermal response from the sample is then measured via the change in reflection during absorption.
The IR laser can sweep the entire fingerprint region in 1 second or less to obtain a sub-micron IR spectrum. Data can be acquired using a variety of modes, including:
- Point spectroscopy
- Hyperspectral imaging
- Single wavelength imaging
O-PTIR is the result of over a decade of research into photothermal physics, initially developed via AFM-based nanoscale IR spectroscopy by Anasys Instruments and their collaborators.
Data Quality Compared to FTIR
O-PTIR delivers high quality spectra in a non-contact reflection mode for a whole variety of sample types. Data quality is consistent with transmission FTIR.

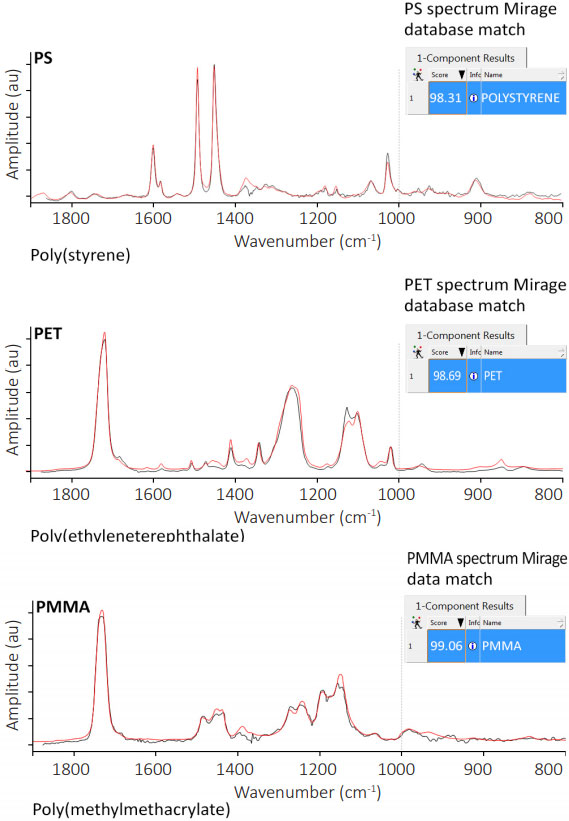

For example, the O-PTIR spectra below of polystyrene (PS), polyethylene terephthalate (PET) and polymethyl methacrylate (PMMA) have over 98% match rates with the KnowItAll spectroscopy database.
Measurements were taken in reflection modes on samples over 20 μm thick. Even the strongest bands exhibit no evidence of saturation. Only the top few microns on the surface are measured. This depth is comparable to ATR (Attenuated Total Reflection), but without the problem of optical band-shape distortion.
Measure Thick Samples
Conventional transmission mid-IR spectroscopy is not usually suitable for thick samples. Light is completely absorbed or scattered before passing through the sample, so the detector does not receive enough photon energy.
O-PTIR however is a non-contact reflection-based technique. This it can be used on thick materials, so there’s no need to produce thin samples. This makes sample preparation much simpler and speeds up the whole process.
The example below shows a reverse engineered multi-layer film, prepared as a simple block face. Points were selected from the optical image, and data took only seconds to acquire.
Example Applications
- Reverse engineer multi-layer films
- Detect defects quickly in films and polymers
- Chemical distribution across multi-layer films
- Composition of each layer

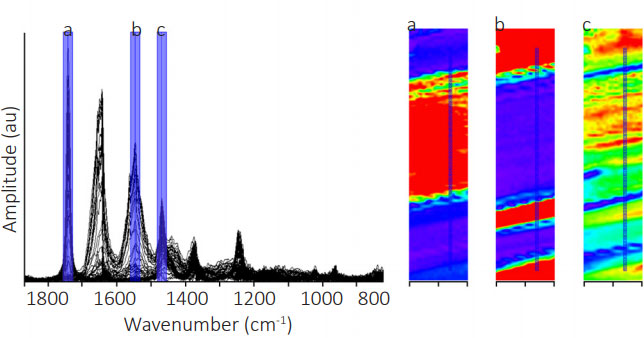

- Wavelength distribution in hyperspectral images at any wavelength (example below)
- Single wavelength images
- Chemical distribution of specific components, layer boundaries and interfaces
Application Note
Further details and examples are available in a pdf application note from Photothermal Spectroscopy Corp:
[icon icon=”notebook”] Submicron resolution IR spectroscopy and imaging of multilayer films
[gap height=”30″]
[one_half][gap height=”10″]
[/one_half] [one_half_last]
mIRage IR Microscope
The mIRage is an O-PTIR microscope that gives you all the benefits of the technique:
- Sub-micron IR spectroscopy and chemical imaging
- No need for contact-based ATR accessories
- Measure thick samples in non-contact reflection mode
- Transmission quality IR spectra
[mini-icon icon=”arrow-right”] More info…
[/one_half_last]
Blue Scientific is the official distributor of the mIRage in the UK, Ireland and Nordic region. If you have any questions or if you’d like a quote, please get in touch:
