For the first time, you can now perform simultaneous IR and Raman on the same spot, using the mIRage from Photothermal Spectroscopy Corp. This is a world first that opens up a whole new range of research possibilities.
Blue Scientific is the official UK and Nordic distributor for Photothermal Spectroscopy Corp. For more information or quotes, please get in touch.
[icon icon=”info”] mIRage IR Microscope
[icon icon=”next”] Contact us on +44 (0)1223 422 269 or info@blue-scientific.com
Follow @blue_scientificSubmicron Infrared and Raman Microscopy
Simultaneous IR and Raman (IR-Raman) microscopy is now possible – a world first! The mIRage IR microscope from Photothermal Spectroscopy Corp is a unique dual modality platform that combines the advantages of O-PTIR with Raman microscopy, with simultaneous detection using a visible probe laser.
You can now collect infrared and Raman data from the same spot, at the same time and with the same resolution:
- Spectra
- Line scans
- 2D maps
How it Works

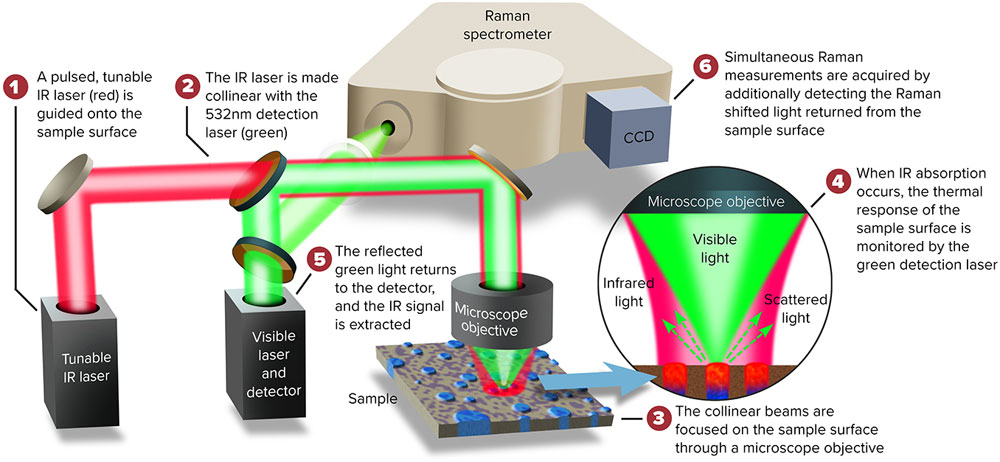

IR-Raman is a non-contact method that uses a co-linear visible light source to measure your sample with sub-micron spatial resolution. Data is acquired from the same spot, at the same time, with the exact same resolution:
New Applications
This unlocks a whole range of new possibilities in fields such as:
- Defect and failure analysis
- Polymers
- Materials science
- Life science
- Pharmaceuticals
- Forensics
Below are just two examples – for more information about how this technique can be used in your area of research, please get in touch.
Example: Red Blood Cells

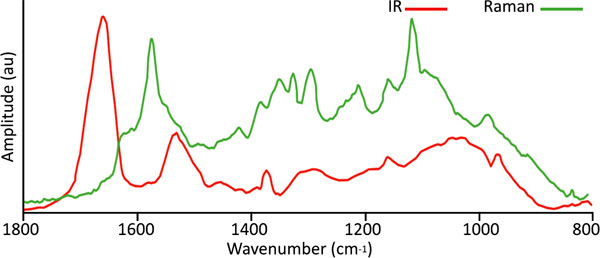

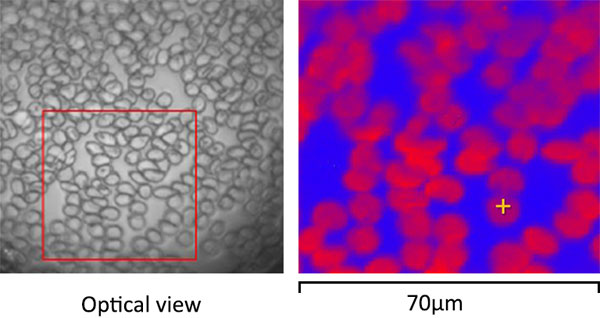

In this example, IR and Raman spectra were collected from a red blood cell (~500 nm resolution). First a 70 x 70 µm region was selected from the optical image for Raman imaging. A single blood cell was then selected for further analysis.
Example: Polymers and Plastics

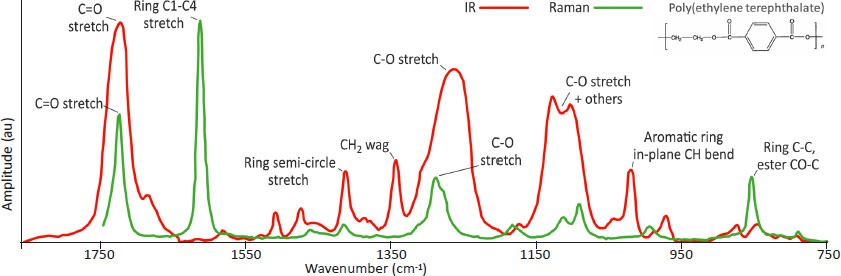

A film of polyethylene terephthlate (PET) was analysed with simultaneous O-PTIR and Raman. The spectra were acquired from the same spatially resolved, sub-micron spot:
Recorded Webinar
Find out more about simultaneous infrared and Raman in a 40 minute webinar from Photothermal Spectroscopy Corp. An excerpt is below – you can watch the full version on their website:
[icon icon=”mac-alternative”] Watch the complete webinar
mIRage IR Microscope
Sub-micron IR spectroscopy and imaging system
- Breaks the diffraction limit of traditional infrared
- Bridges the gap between IR microspectroscopy and nanoscale IR
- Non-contact method – fast and easy-to-use
- Works in reflection mode – no need for thin sections
More Information
Blue Scientific is the official distributor for Photothermal Spectroscopy Corp in the UK and Scandinavia (Norway, Finland, Denmark, Sweden and Iceland). We’re here to answer all your questions – just get in touch:
