Follow @blue_scientificCombine Microscopy Techniques
Renishaw’s new Correlate software module enables you to combine imaging techniques for new insights from your microscopic methods.
Microscopy techniques are typically used separately in the lab. However, the results are often complementary, so combining them can lead to a better interpretation of your sample. Overlaying images from multiple techniques can give you a deeper understanding, as well as making the results easier to interpret.
New Renishaw Correlate Software
Renishaw’s new Correlate software module combines images from Raman spectroscopy with other imaging techniques. You can compare Raman results with other commonly used microscopic methods including:
- SEM,
- Fluorescence
- AFM
- Infrared
- Optical microscopy
Compatibility
The Correlate module is part of Renishaw’s WiRE 5.3 software. It can be used with these systems from Renishaw:
- inVia confocal Raman microscope
- Virsa remote sampling Raman analyser
- RA802 Pharmaceutical Analyser
- RA816 Biological Analyser
For information about the other techniques it can be used with, please get in touch.
Useful Software Tools
It’s easy to use; First record the coordinates of three or more reference points and data acquisition points on your sample. The Correlate module then guides you to these regions of interest, ensuring that data is acquired from the exact same locations. The images are then overlaid for interpretation.
- Coordinate Manager – Import and transform coordinates from commonly-used microscopy systems to the Raman system.

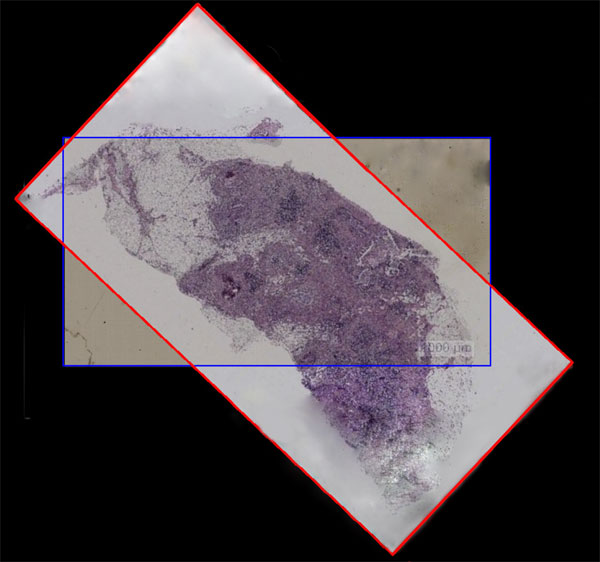

- Image Alignment Tools – Translate, rotate, adjust the size and aspect ratio of the overlay. You can also vary the transparency.
- Batch measurements – Automate the same Raman measurement at various positions on the sample.

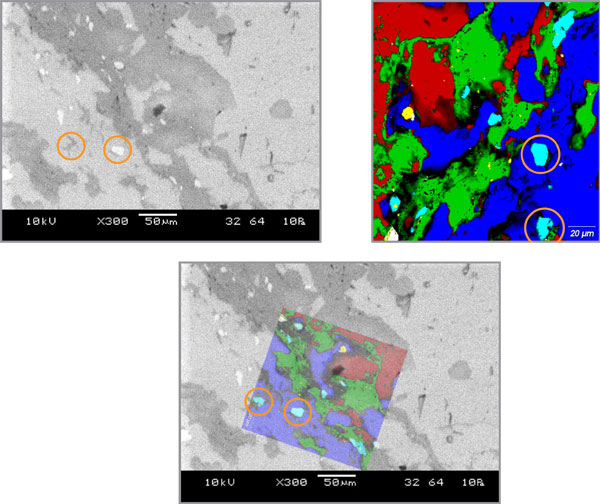

Example: Studying a Mineralogical Section
See how the new software can be used in this application note from Renishaw. Raman and SEM images of a mineralogical sample were combined to create more powerful data, incorporating both chemical and physical information.
