Bruker LUMOS ll ILIM

By integrating Infrared Laser Imaging (ILIM) into the LUMOS DNA we created something extraordinary. Finally, we can start thinking in images, instead of spectra. You are no longer looking at a microscope, but “Infrared Eyes” that let you characterise your samples at unprecedented level of detail and IR imaging speeds.

TissuePlus™
Analyse whole tissue microtome sections in minutes and get vital insights into the spatial biology of such samples.

TabletPlus™
Analyse and deformulate tablets and pills in minutes. Access the chemical information about APIs, excipients, and fillers.

ParticlePlus™
Analyse complete filters in minutes and get crucial knowledge about the chemical make-up of particles and microplastics.

Technical Features:

• Patented spatial coherence reduction for IR images of maximum quality
• WinGuard™ technology for open design at laser class 1 safety

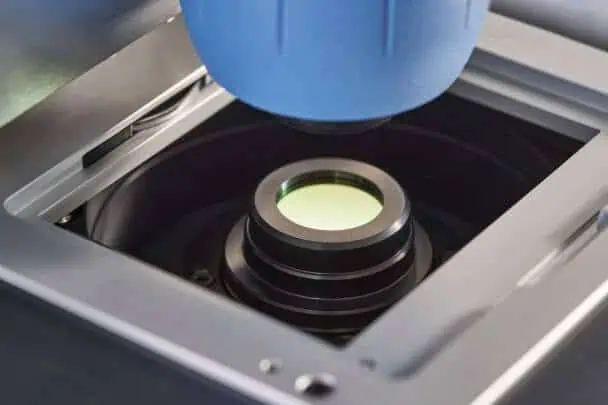

• 4x lens objective (4.25 µm pixel size) with NA 0.6 and huge field of view (FOV) 2.2 mm x 2.0 mm
• Superior IR imaging speeds at up to 62,400 spectra / second at maximum speed and full spectral range (249,600 spectra in 4s @ 950-1800 cm-1)
• Full hardware automation with push-button software design
• Validation plate for automated instrument qualification OQ/PQ
